Airmove
Airmove Series is a portable large volume fan newly devleoped by KALEFANS. The fan 7 feet (2m) in diameter and can be moved easily indoors and outdoors due to the 4 installed wheels. The fan utilizes a Permanent Magnet Synchronous Motor (PMSM) motor to drive the fan blades which can produce large and continuous airflow. In hot and humid weather, the cooling effect of one Airmove fan is comparable to the effect of more than 20 industrial fans. The extremely rugged and durable steel frame of the fan allows it to be used in even the harshest environments. With its high volume and low speed operation coupled with its IP55 rating, the Airmove is your perfect all-weather solution for providing comfortable and cost efficient cooling anytime, anywhere.
- Super large air volume - up to 24m effective distance.
- Portable - the 4 heavy duty wheels allows you to move the Airfree anywhere
- Energy Saving - using only 0.4KW of power.
- Quiet & Low noise - only 43DB
- Stepless Speed Control - PMSM motor driving the fan blades, VFD stepess speed control
- Waterproof/Dustproof - IP55 protection level. The fan can be used in rainy/humid weather, easily cleaned by water and can operate even in dusty environments
- Modular design - this makes the fan easily assembled/disassembled for extreme portability
| BRAND: | KALE |
| SIZE: | 7ft (2m) |
| MODEL: | SHVLS-Y6BAA20 |

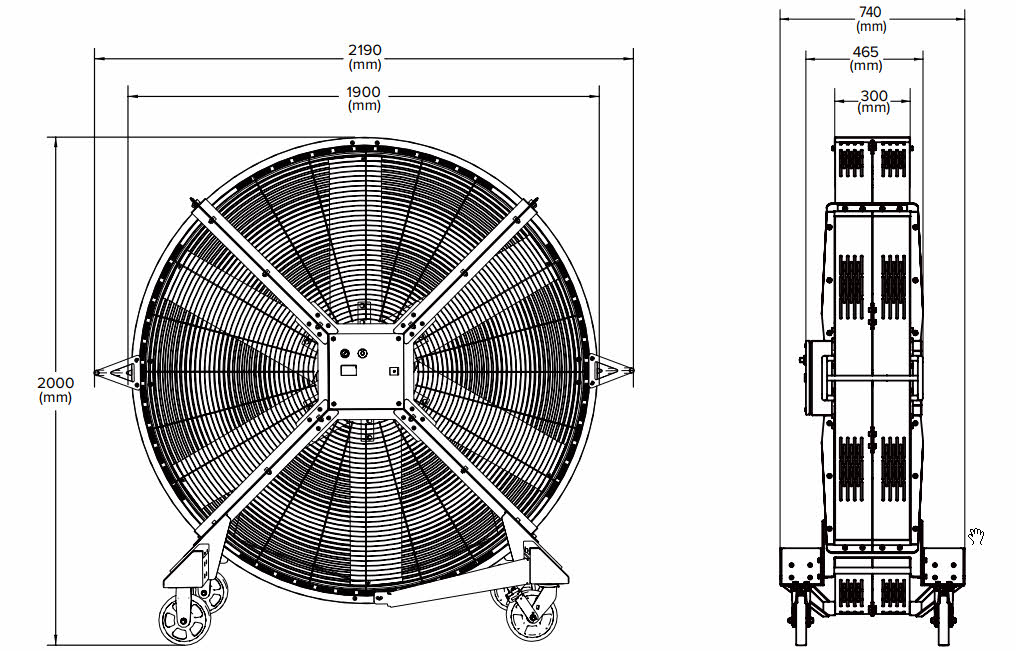

| DIMENSIONS (WxHxD) | 2190mm x 2000mm x 748mm |
| FULL AIR VOLUME: | 1068m3/min |
| MAX SPEED: | 220RPM |
| RANGE OF WIND SPEED: | 0-24m(7m/s-0.9m/s) |
| MOTOR TYPE: | PMSM motor |
| MOTOR POWER: | 0.4KW |
| VOLTAGE: | 220V 1P |
| FULL LOAD CURRENT: | 1.8Amps |
| SOUND LEVEL (maximum speed): | 43dB (A) |
| PROTECTION LEVELS: | IP55 |
| FAN WEIGHT: | 213kg |

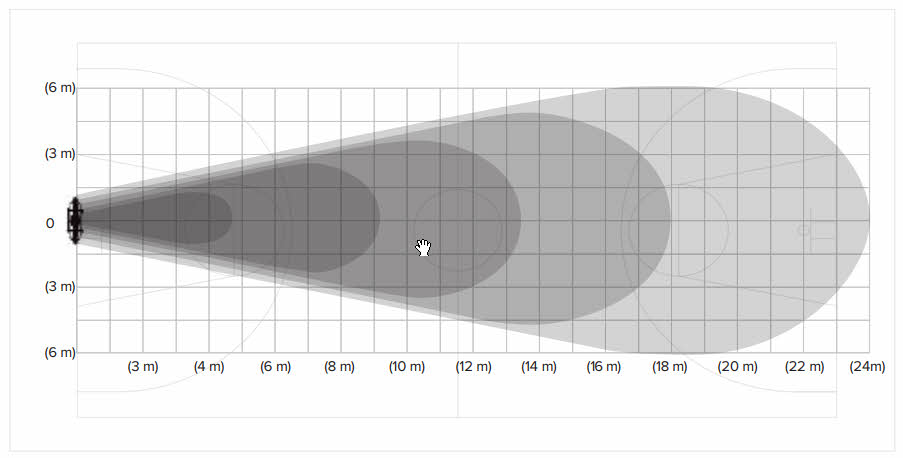

Area Coverage
